Egg Grading
HG600

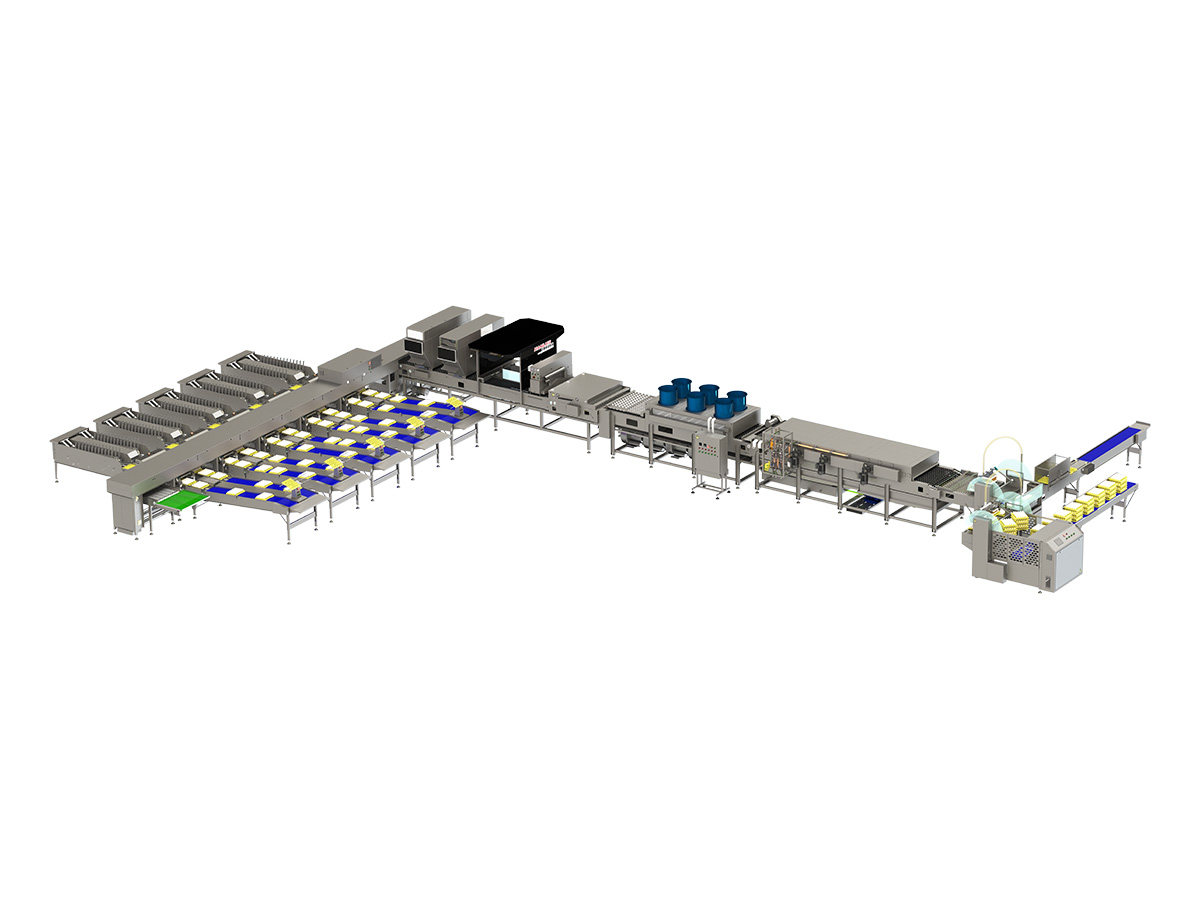

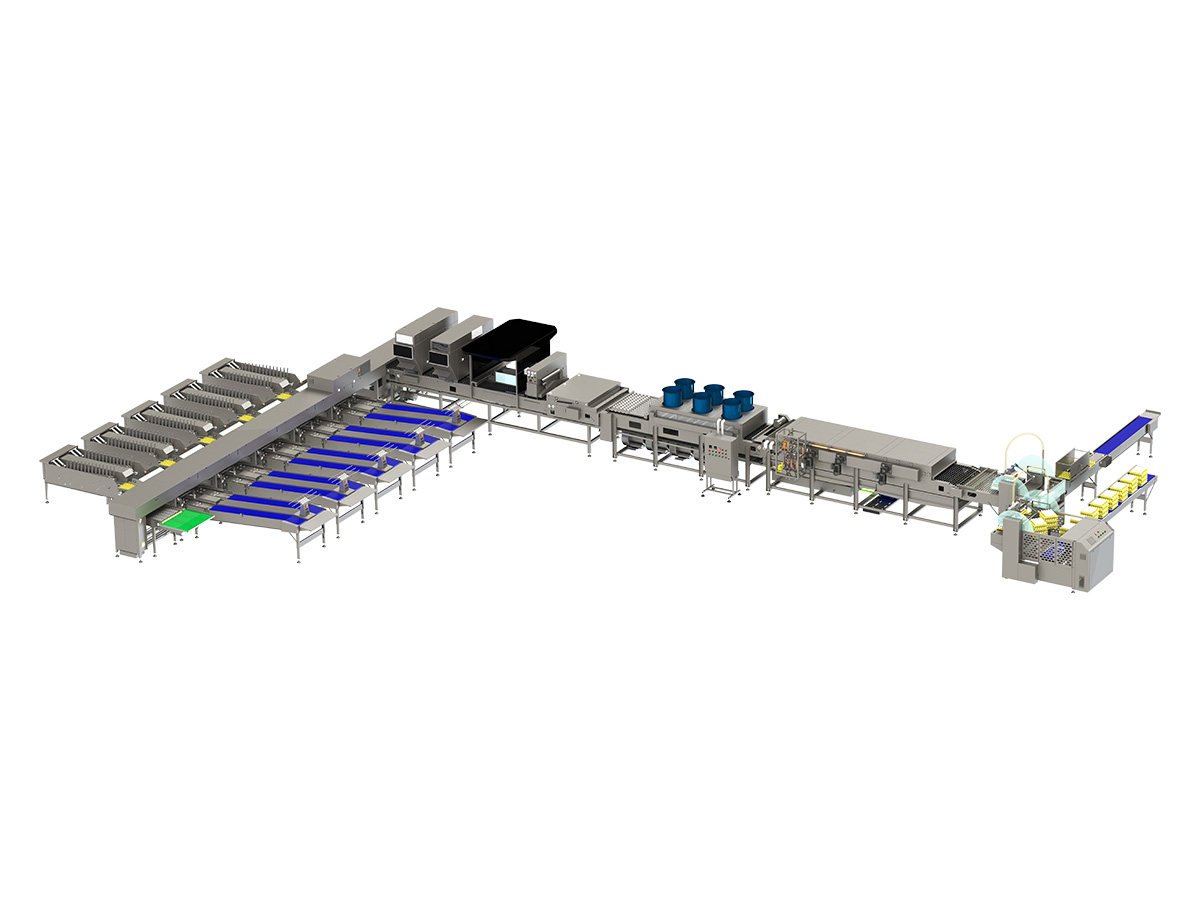

60,000 Egg Grading & Washing Machine

● 60,000 eggs/hour
● Central egg collection line/Manual egg loading

Accurate capture, stable delivery, and fully automated egg placement.

Get in touch
Get in touch
Video

Product Characteristic

  • Efficient pre-processing (can be paired with automatic feeding machine, connected to central egg collection line).
  • Grading packaging system (six rows of "static weighing", automatic egg cup conveyor line, egg tray and egg box mixed packaging line).
  • DSP visual inspection system (dirty egg detection, cracked egg detection and positioning system, PLC control system).
  • The spare parts adopt world- renowned brands, such as Siemens, Schneide, Japanese imported motors,HMB sensors, and Omron sensors.
  • Point-to-point connection of egg products has a short running distance, and the connection is more stable.
  • The static egg grading method has high accuracy of data and the error is less than 0.2g.
  • Capable of carrying, oil-coating for freshness preservation, UV sterilization, and automatic coding.

Product Features

  • Accurate capture, stable delivery, and fully automated egg placement.

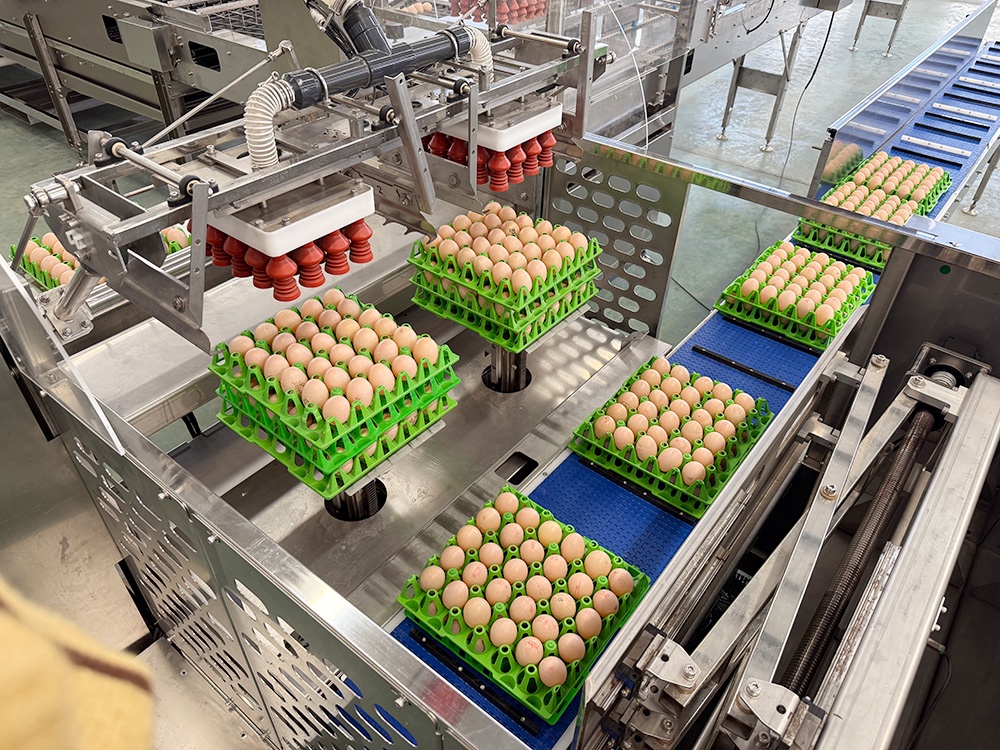

    Automatic Egg Loading
    Accurate capture, stable delivery, and fully automated egg placement.
  • Gentle alignment, automatic alignment, ensuring egg delivery.

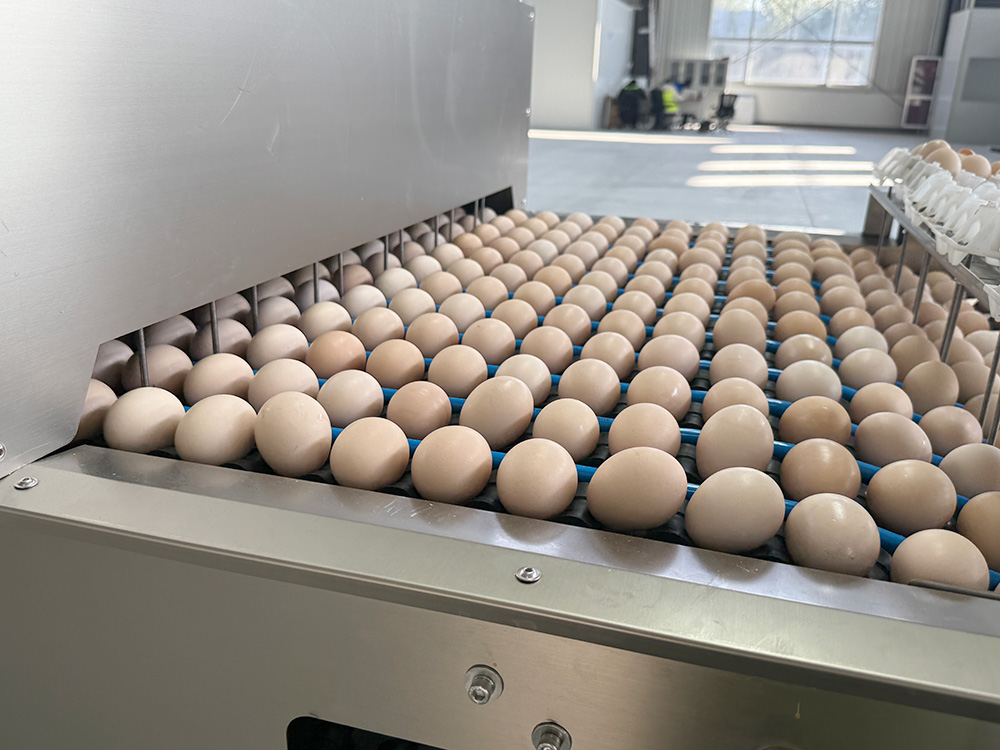

    Aligning Conveyor
    Gentle alignment, automatic alignment, ensuring egg delivery.
  • The manipulator performs bionic grasping and stable transfer of eggs to the production line.

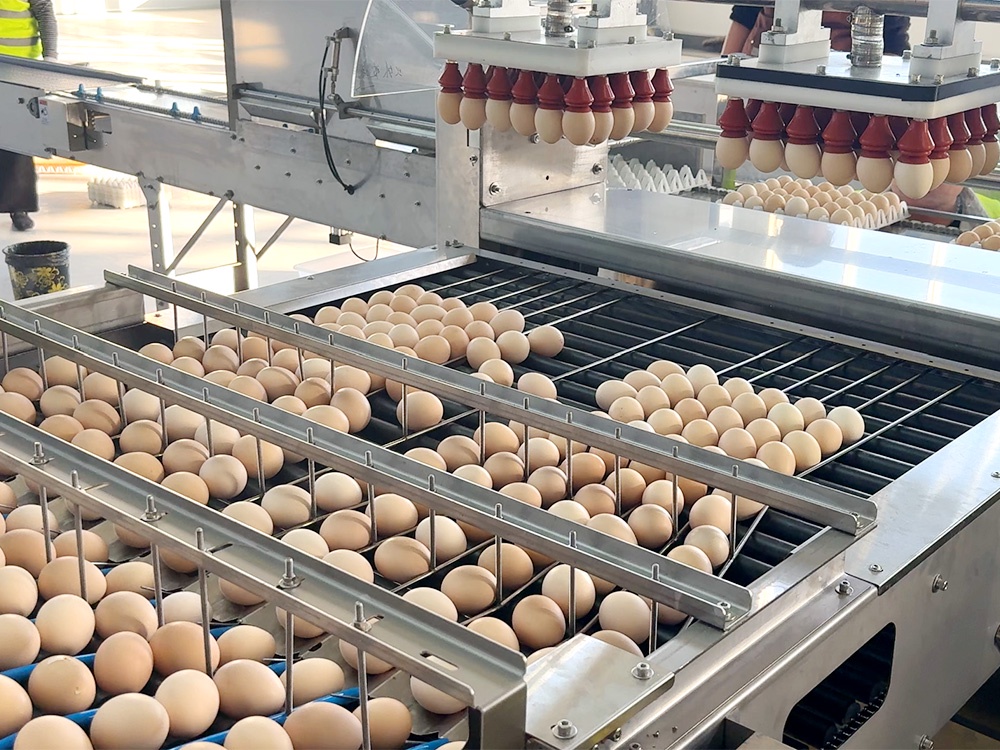

    Orientation Adjustment
    The manipulator performs bionic grasping and stable transfer of eggs to the production line.
  • The specially designed brush thoroughly cleans the eggs using a cleaning system.

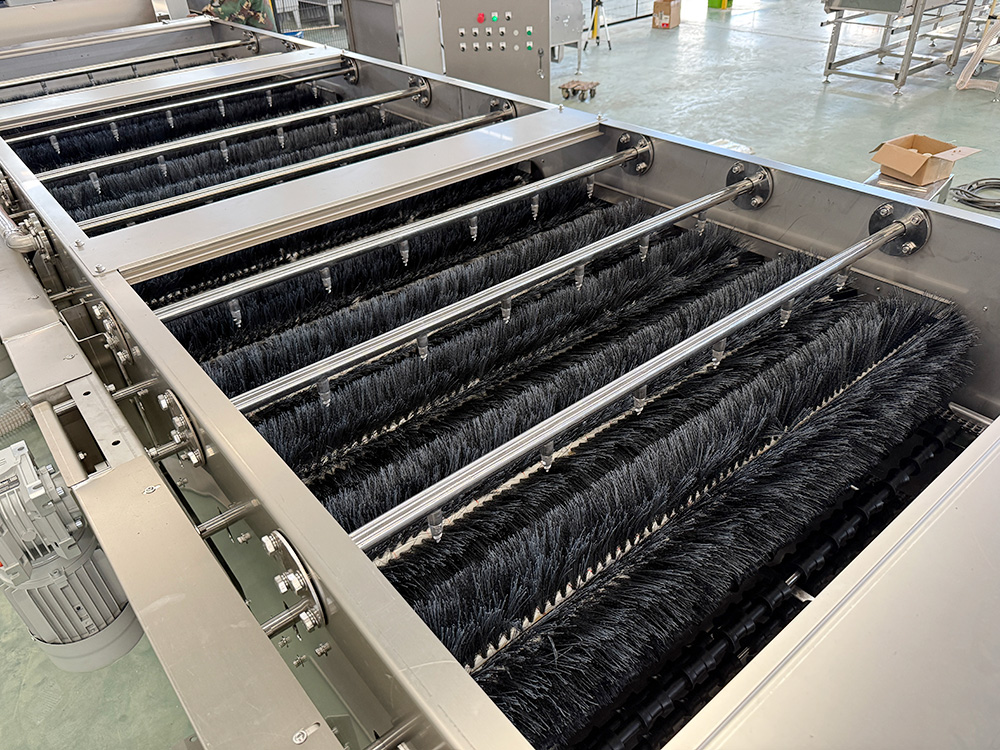

    Cleaning System
    The specially designed brush thoroughly cleans the eggs using a cleaning system.
  • Three-stage drying system with low-temperature air supply, non-destructive drying to remove surface moisture from eggs.

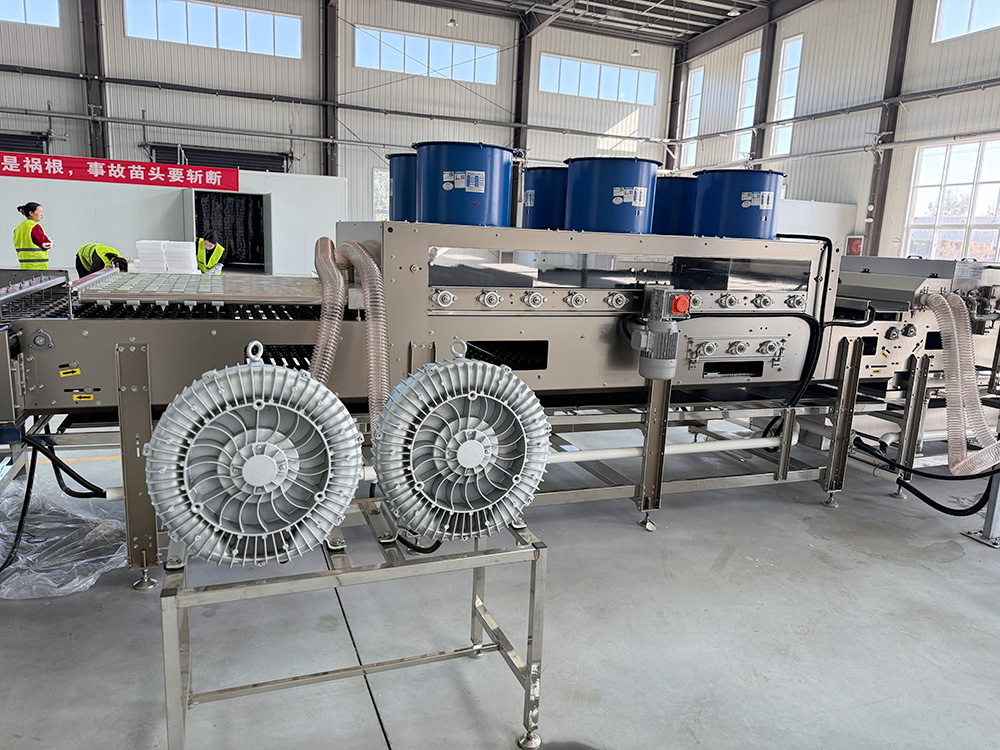

    Drying System
    Three-stage drying system with low-temperature air supply, non-destructive drying to remove surface moisture from eggs.
  • Ultraviolet light sterilizes surface bacteria without compromising egg quality, ensuring safety and zero residue.

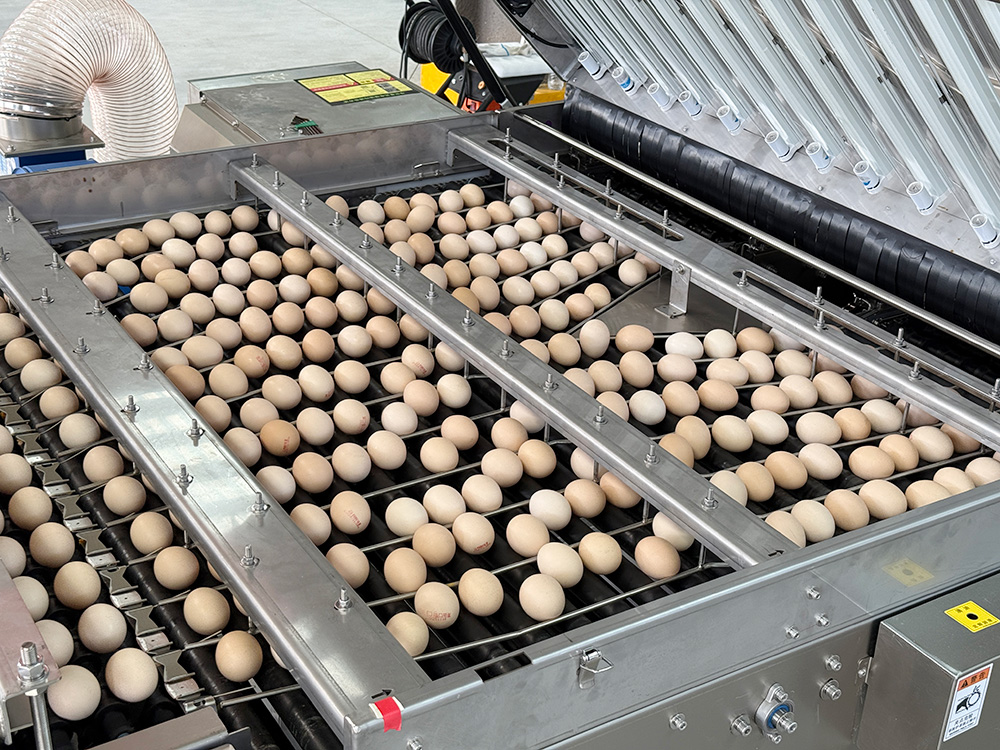

    UV Sterilization Section
    Ultraviolet light sterilizes surface bacteria without compromising egg quality, ensuring safety and zero residue.
  • Efficient atomization spraying forms a uniform protective oil film on eggshells, providing long-lasting insurance and protection.

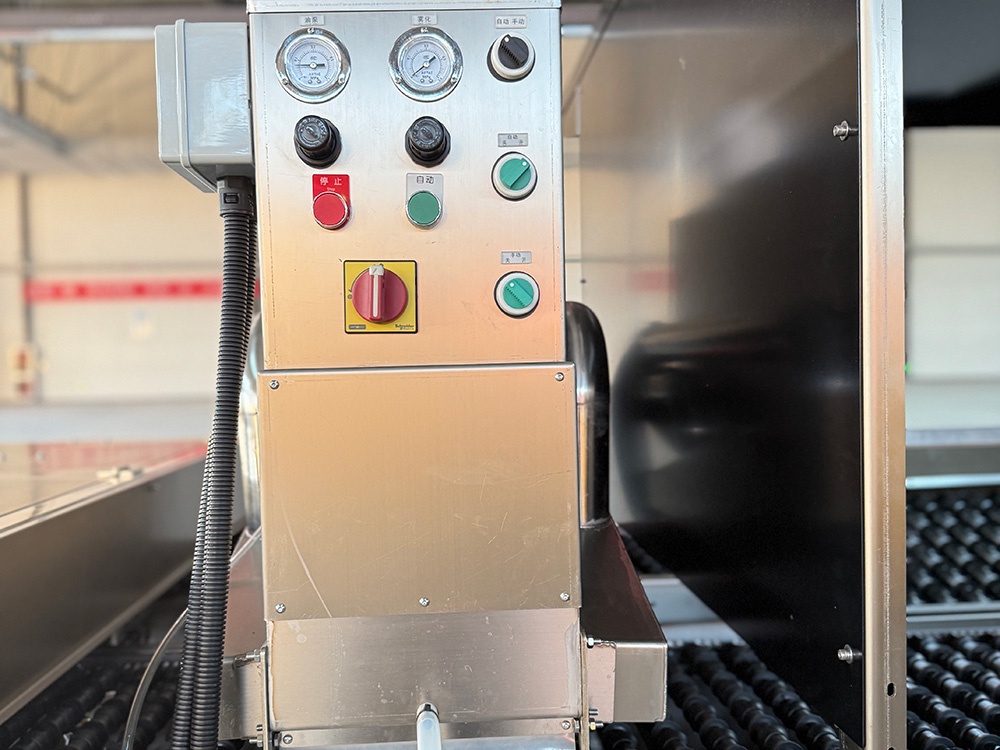

    Oil Coating Machine
    Efficient atomization spraying forms a uniform protective oil film on eggshells, providing long-lasting insurance and protection.
  • By illuminating eggs with LEDs of different wavelengths, light inspection personnel can observe the light penetration and reflection patterns, thereby identifying non-compliant eggs, assessing freshness, ensuring food safety, and enhancing product market competitiveness.

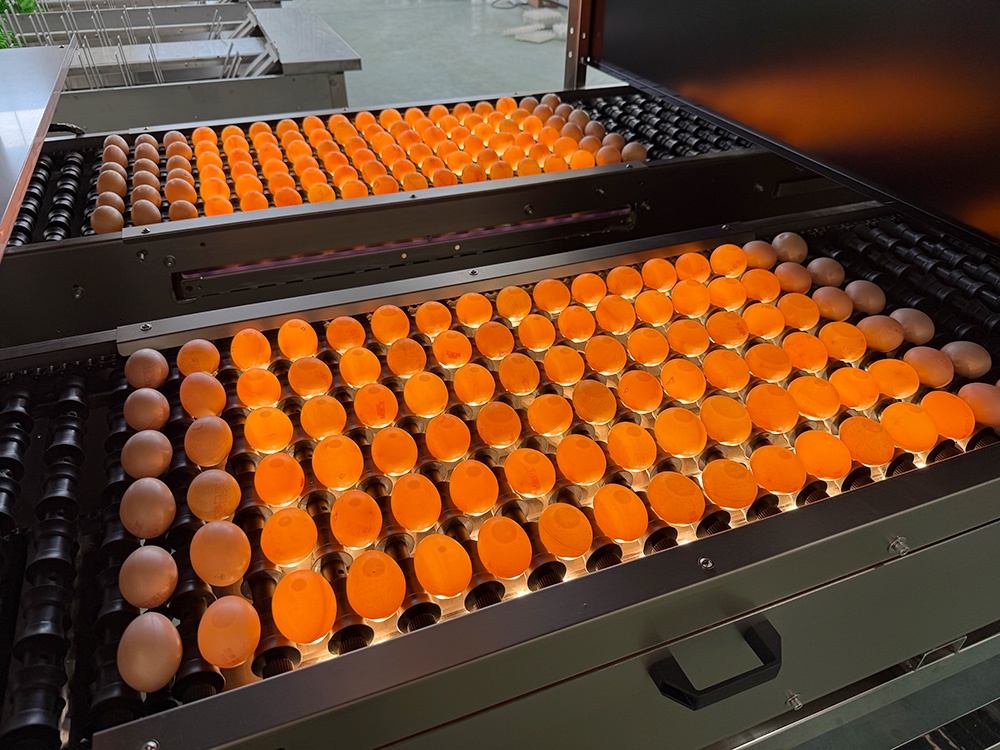

    12-Row Egg Candling
    By illuminating eggs with LEDs of different wavelengths, light inspection personnel can observe the light penetration and reflection patterns, thereby identifying non-compliant eggs, assessing freshness, ensuring food safety, and enhancing product market competitiveness.
  • Utilizing optical imaging and integrating AI algorithms, the system accurately identifies and locates egg cracks, sending OK/NG signals to the removal device. The system demonstrates excellent stability and accuracy, with superior detection rates for micro-cracks and hidden cracks compared to human visual inspection using LED.

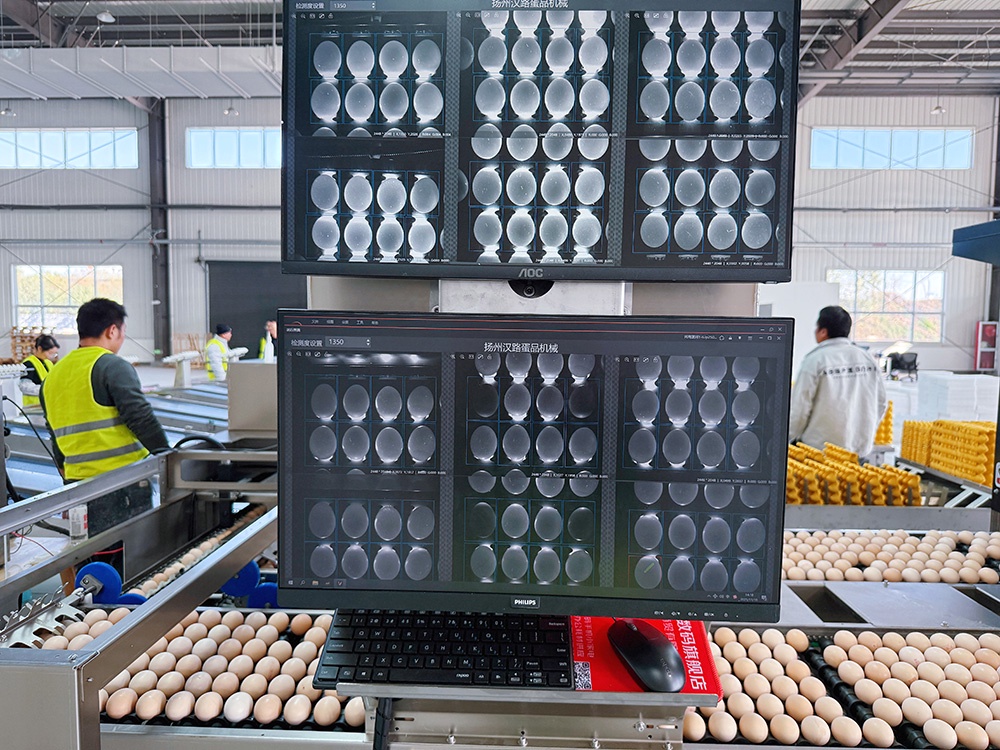

    AI Visual Crack Detection
    Utilizing optical imaging and integrating AI algorithms, the system accurately identifies and locates egg cracks, sending OK/NG signals to the removal device. The system demonstrates excellent stability and accuracy, with superior detection rates for micro-cracks and hidden cracks compared to human visual inspection using LED.
  • The weighing device is positioned above the egg, ensuring precise and stable measurements. Its claw mechanism features a special design to prevent damage. The PLC can track different weight categories, with an error tolerance of ±0.1 grams.

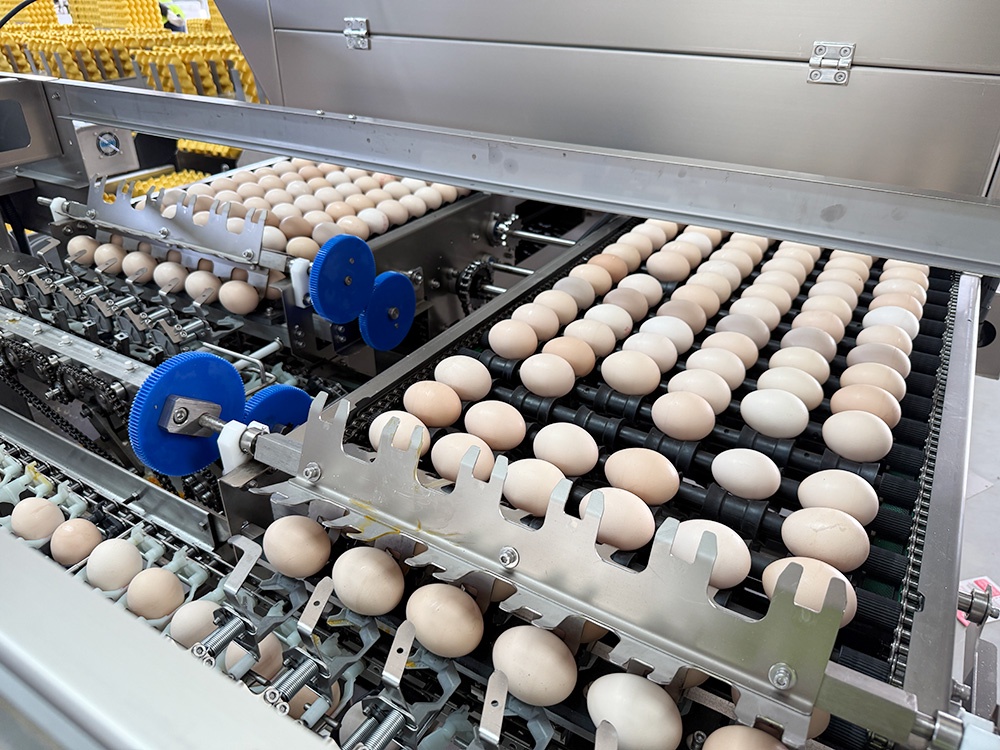

    Weighing System
    The weighing device is positioned above the egg, ensuring precise and stable measurements. Its claw mechanism features a special design to prevent damage. The PLC can track different weight categories, with an error tolerance of ±0.1 grams.
  • Suitable for high-yield breeding farms, it has a large footprint, numerous pallets, fast pallet dispatch, and flexibility. It is applicable to various specifications and materials of egg trays and models.</br>

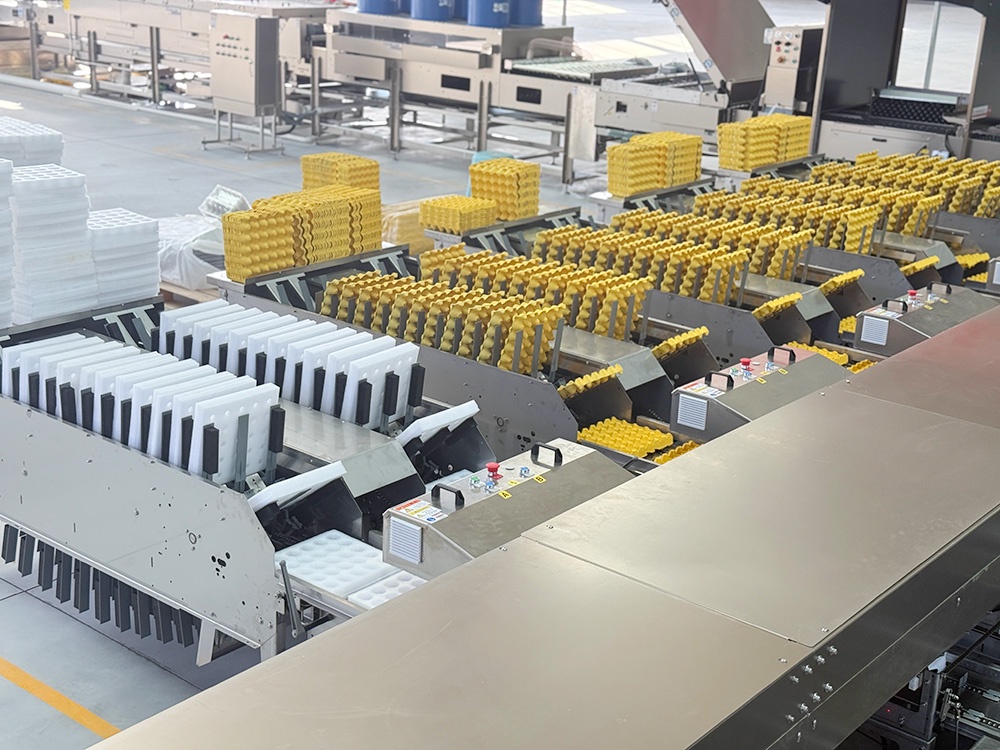

    Automatic Tray Dispensing
    Suitable for high-yield breeding farms, it has a large footprint, numerous pallets, fast pallet dispatch, and flexibility. It is applicable to various specifications and materials of egg trays and models.
  • Automated grading and palletizing ensures eggs are delivered with the larger end facing upward for precise distribution. The adjustable weighing range supports grade sorting. Each conveyor belt operates independently, enabling rapid switching of packaging materials without production halt, ensuring efficient operation.

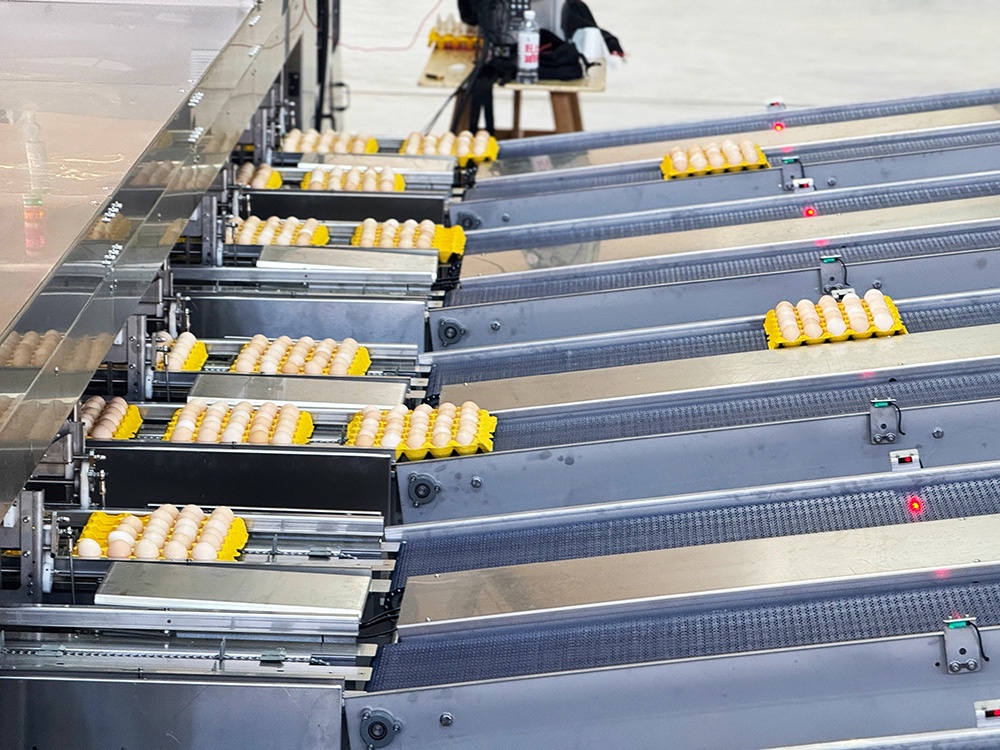

    Automatic Tray Loading Conveyor Line
    Automated grading and palletizing ensures eggs are delivered with the larger end facing upward for precise distribution. The adjustable weighing range supports grade sorting. Each conveyor belt operates independently, enabling rapid switching of packaging materials without production halt, ensuring efficient operation.

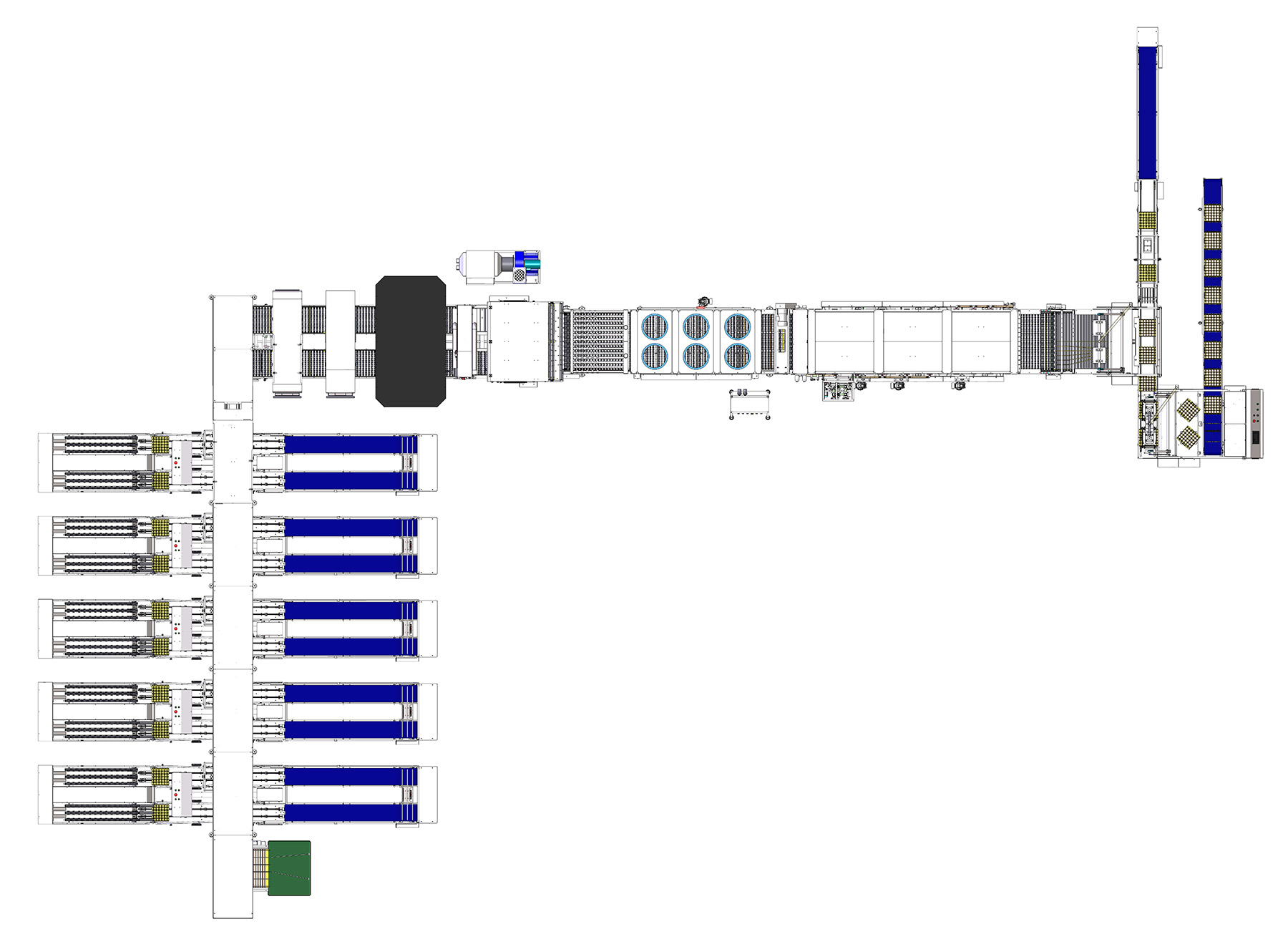

Plane Rendering

Product Specifications

Capacity

60,000 eggs/hour

Power Supply

400/240V 3 phase 50/60Hz

Power Consumption

40.6kW

Dimensions

19660×11966mm

Height

1996mm

Loading method

Central egg collection line/Manual egg loading
